LinkGlass

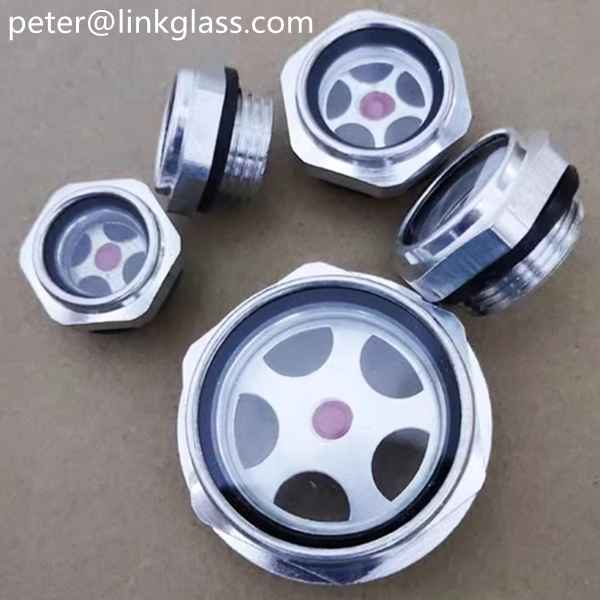

Oil sight glass oil level gauge aluminum
Oil sight glass oil level gauge aluminum
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Couldn't load pickup availability
Monitor oil levels with ease using our Oil Sight Glass Oil Level Gauge. Designed with durable aluminum, this gauge provides accurate measurements for efficient maintenance. Keep your equipment running smoothly with this essential tool.
| Metric standard | M (thread outer diameter) * screw thread OD: M10*1:thread outer diameter 9.7mm, screw thread distance 1mm | |||||||
| Specification | M10*1 | M12*1.25 | M12*1.5 | M14*1.5 | M16*1.5 | M18*1.5 | M20*1.5 | M22*1.5 |
| Screw thread OD (mm) | 9.7 | 11.7 | 11.7 | 13.7 | 15.8 | 17.8 | 19.8 | 21.8 |
| Opposite side OD (mm) | 13 | 17 | 17 | 17 | 19 | 21 | 23.77 | 26.21 |
| Specification | M24*1.5 | M26*1.5 | M27.1.5 | M27*2 | M33*1.5 | M33*2 | M36*1.5 | M36*2 |
| Screw thread OD (mm) | 23.8 | 25.8 | 26.8 | 26.8 | 32.8 | 32.8 | 35.8 | 35.8 |
| Opposite side OD (mm) | 28.46 | 31.7 | 31.9 | 31.9 | 34.9 | 34.9 | 36 | 36 |
| Specification | M39*1.5 | M40*1.5 | M42*1.5 | M42*2 | M48*1.5 | M48*2 | M60*2 | |
| Screw thread OD (mm) | 38.8 | 39.8 | 41.8 | 41.8 | 47.8 | 47.8 | 59.8 | |
| Opposite side OD (mm) | 36 | 36 | 46 | 46 | 48 | 48 | 62 | |
| British standard | ||||||||
| Specification | G1/4'' | G3/8'' | G1/2'' | G3/4'' | G1'' | G1 1/4'' | G1 1/2'' | G2'' |
| Norminal | DN8 | DN10 | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
| Screw thread OD (mm) | 12.8 | 16.6 | 20.6 | 26 | 32.9 | 41.5 | 47.5 | 59.15 |
